提升機

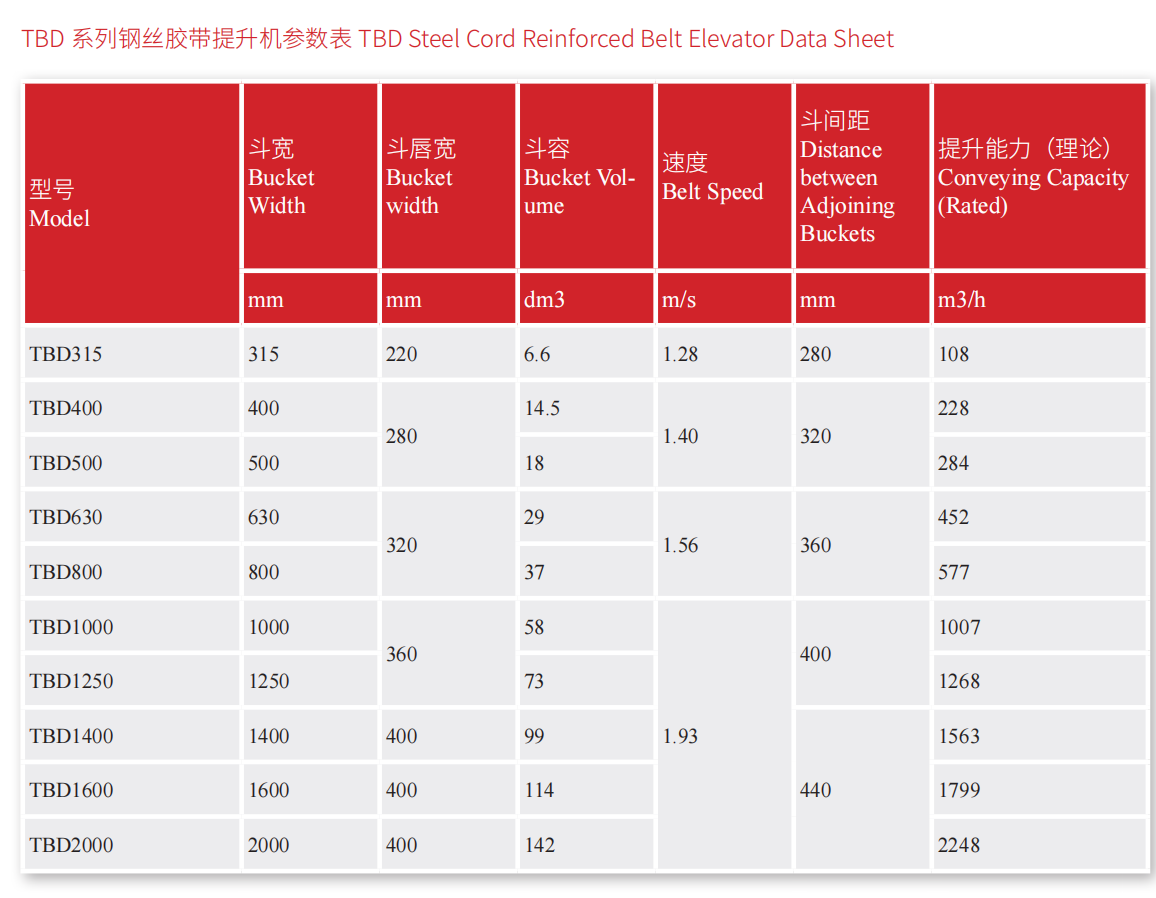

鋼絲膠帶提升機
鋼絲膠帶提升機
Steel Cord Reinforced Rubber Belt Elevator
公司 TBD 系列鋼絲膠帶提升機適用于提升生料、水泥等散裝物料。
SINOMA-TCDRI TBD series belt bucket elevator is used for elevating bulk materials such as raw mill and cement.
結構特點：
●頭、尾滾筒采用鼓形表面，可自動糾正膠帶的運行。
The head and tail pulley are drum-shaped surface,
which can automatically correct the alignment of the
belt;
●頭部滾筒面由可更換的摩擦襯片組成，維修更換方便。
The head pulley at the top is made up of segmented
friction lining, which is convenient for repair and
replacement;
●籠型結構的尾部滾筒，避免了物料堆積。
The tail pulley is cage structure, which prevents material from piling up;
●料斗與膠帶之間有成型的橡膠墊板，在料斗繞過頭尾滾筒時起緩沖作用。
Rubber pads placed between the buckets and the belt as cushion when the buckets pass the head and tail
pulleys;
●料斗與膠帶的固定采用帶釘?shù)牡温菟ê偷螇|圈，以避免緊固螺栓的轉動。
The fixing of buckets and the belt is done by tapered fasteners fixed to a small base plate with a butterfly
shaped washer, which prevents the fasteners from moving
產品特點：
●提升高度大：可提升至 150m。
Elevating altitude: up to 150 meters
●提升能力大：最大可達 1300t/h。
Elevating capacity: up to 1300 t/h
●料斗排列緊湊，保證了連續受料和卸料。
Compact alignment of buckets, which ensures continuous material feeding and discharge;
●可靠性高，運行成本相對較低。
High reliability and lower operation cost compared with chain elevators.
鏈?zhǔn)教嵘龣C(jī)
公司 NB 系列斗式提升機主要用于垂直提升散狀物料，主要分為：NBC 型、NBS 型和 NBH 型三種型式。
SINOMA-TCDRI NB bucket elevators are mainly used for vertical transportation of bulk materials. They are
categorized into three types: NBC type, NBS type and NBH type.

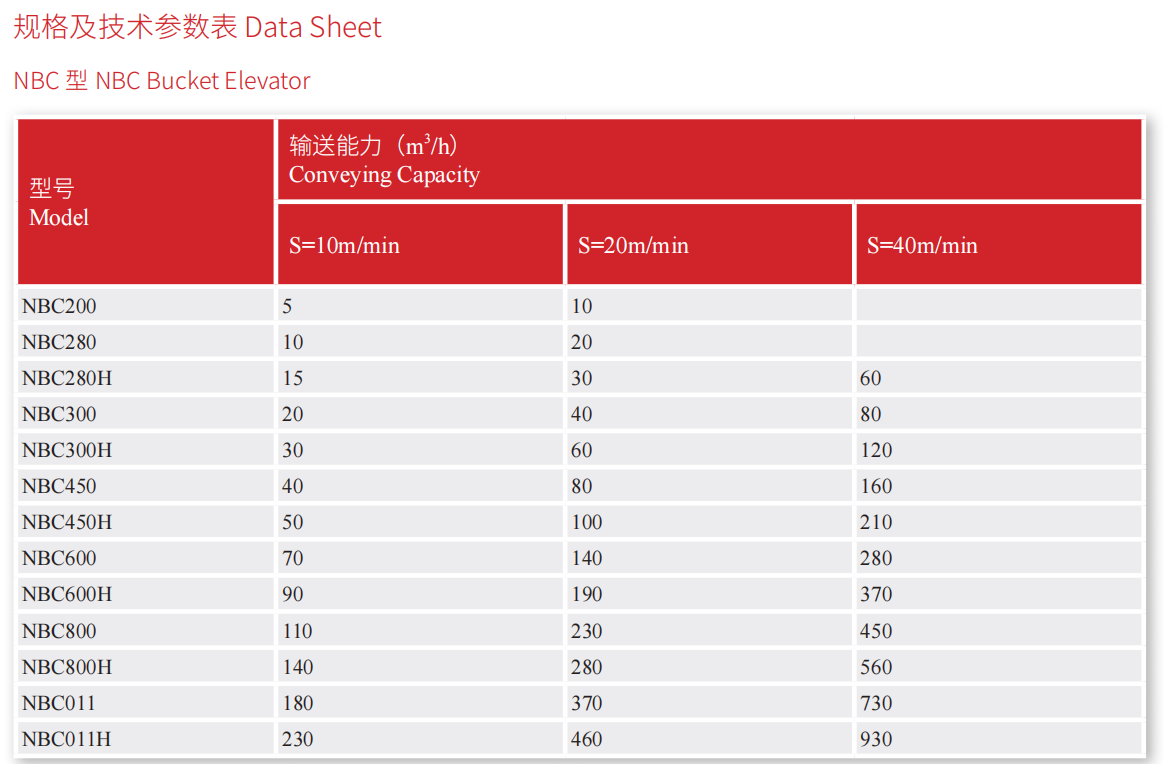

● NBC 型：適合以中低速提升石灰石、熟料等；
NBC bucket elevator: suitable for elevating limestone and clinker at a medium to low speed;

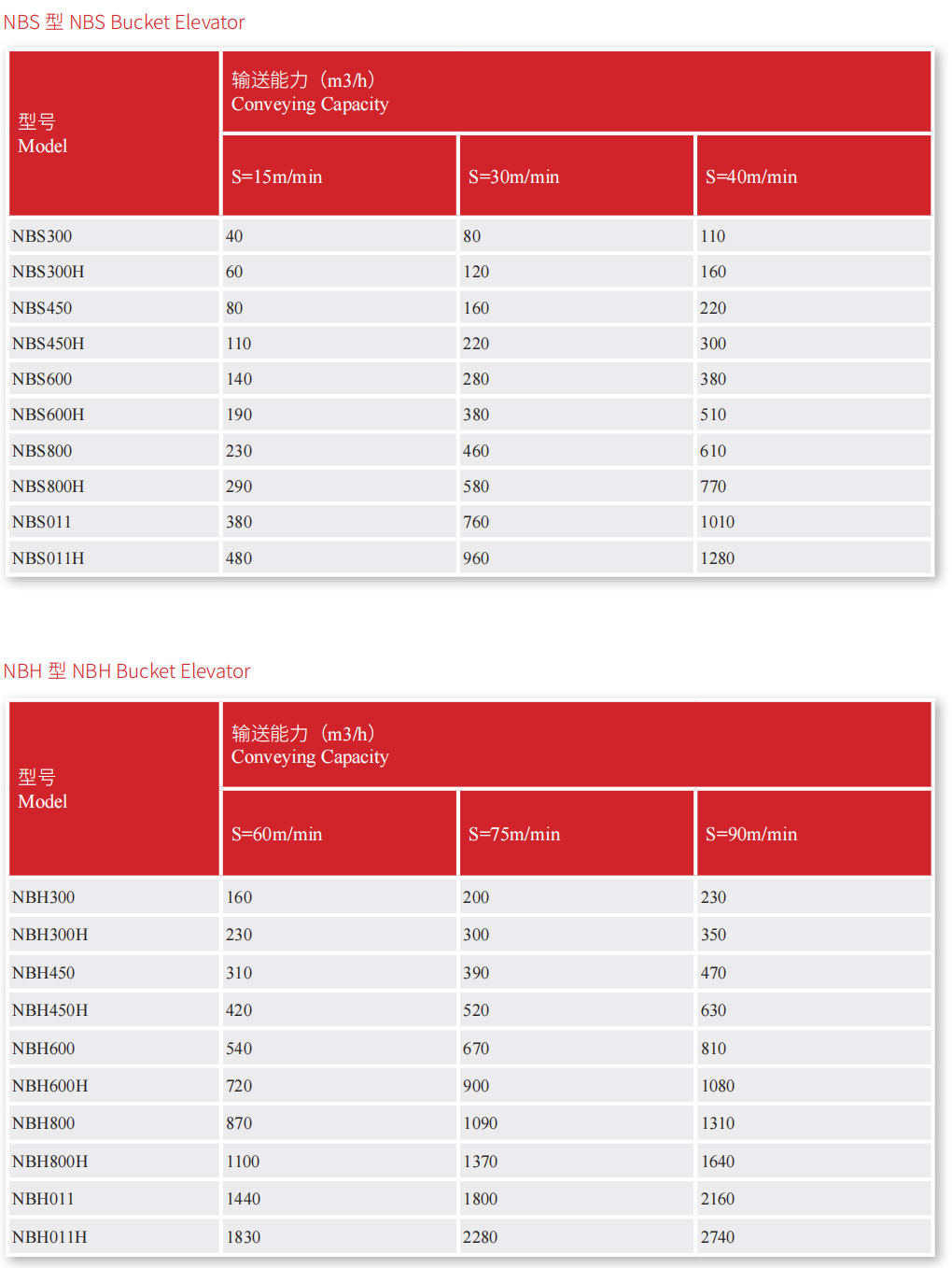

● NBS 型：適合以低速提升粉狀物料和小顆粒狀物料；
NBS bucket elevator: suitable for elevating granulated material or powder at a low speed;
● NBH 型（NBH-C)：由 NBS 發展的一種高速斗式提升機，由于運行速度高，在提升能力相同時，可采用比
NBS 型小的提升機，非常經濟。
NBH (NBH-C) bucket elevator: high speed bucket elevators developed from NBS bucket elevators; due to increased elevation speed, at same capacity, compared with NBS bucket elevators, this type of bucket elevator is smaller size and thus is a more economic choice.

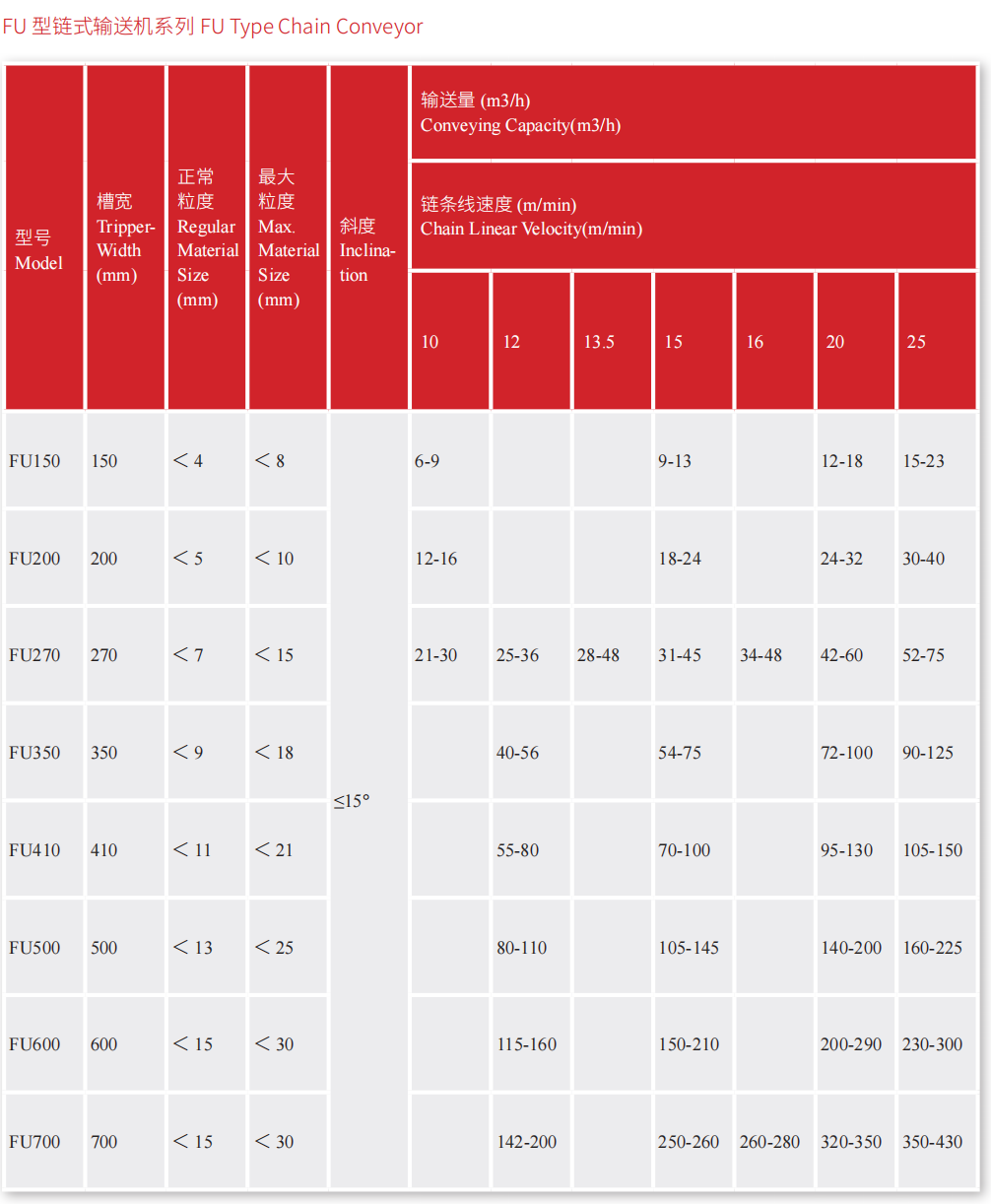

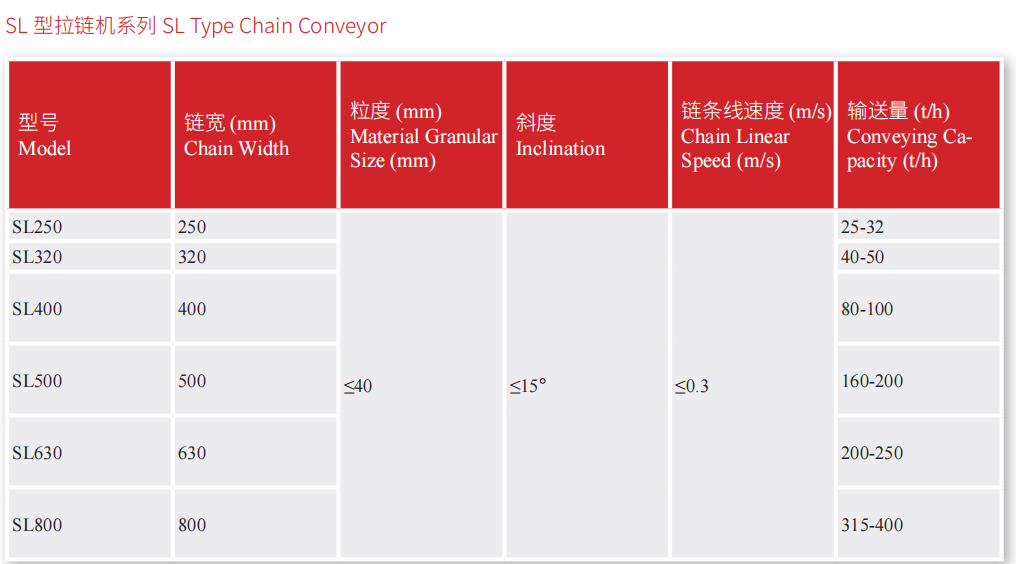

鏈?zhǔn)捷斔蜋C(jī)
鏈?zhǔn)捷斔蜋C(jī)（拉鏈機），是一種輸送粉狀、粒狀物料，運行水平或傾斜角小于 15°的機械產品，已廣泛用于水泥、
建材、冶金、化工、電力、糧食加工等行業。
A chain conveyor is used for horizontal or inclined (within 15°) transport of powdery and granulated materials.
It has been widely used in industries such as cement, building materials, metallurgy, chemical processing, power generation and food processing.
產品優點
●產品設計合理，體積小，輸送能力大，使用壽命長，運轉可靠，節能高效，維修方便。
Well-developed design, compact layout, high conveying capacity, long service life, reliable operation,
energy efficiency and easy maintenance.
斗式輸送機
NAB 鏈斗輸送機：適用于磨損性強、塊狀物料。具備了斗式提升機的特點同時又可以像刮板機一樣復雜的輸送
路線。
NAB type Elevator: suitable for conveying strong abrasiveness and lumpy material, it has the same characteristic with
NB type elevator, however, it will provide the complicated conveying route like scraper conveyor.
結構特點：
●由于是料斗的形式、適用于化工行業可以輸送磨損性大的塊狀物料
It is suitable for conveying strong abrasiveness and lumpy material in Chemical Industry.
●既可以水平→垂直（傾斜）、又可以水平→垂直（傾斜）→水平的輸送路線
The conveying route can be: From Horizonal to Vertical, From Horizonal to Vertical then to Horizonal.
●
運行時雜音小、比較安靜滿足環保對噪音的要求。
The noise is much lower, it will satisfy the requirements from Environmental Protection.
●
殼體是密閉構造，再加上斗子形式。不會向外漏料。
The structure of casing is airtight type, together with the bucket type, the material will not leak.
●特殊的料斗構造、可以實現自動回收殼體底部余留物料。
The special type of bucket can realize automatic collecting of material accumulated in the bottom.
●“Z”字形輸送線路
“Z”Type conveying route
PB (PA) 中樞料斗輸送機：料斗連續連接， 可多點排料。
PB（PA）Central System Bucket Elevator：bucket is connected continuously, the elevator can discharge from multiple point.
產品特點：
●容器式搬送避免破碎
It will avoid material broken because of the Container type conveying
●連續式料斗搭配防止飛散裝置避免溢料
It will avoid material leaking because of the continuous bucket connecting type.
●配回收設備避免物料殘留
Equipped with recycling device to avoid material remaining.
●中樞料斗多點卸料
Central System Bucket, discharging material from multiple point.
