環保設備 行噴脈沖袋收塵器
結構特點
行噴脈沖袋收塵器，用于氣體中固體顆粒的去除和收集，適用于水泥熟料冷卻機、窯尾及生料磨、烘干機等大氣量高溫氣體的收塵；可用于各種水泥、礦渣、煤粉磨系統成品料粉收集及除塵工藝；同時適用 于冶金、電力、化工、機械和民用鍋爐等廢氣除塵。最小排放濃度可達到2mg/Nm3。
●獨特室內換袋（Walk in）結構，保證設備漏風率真正低于 2.5%。減少了設備銹蝕，也降低了收塵器后風機能耗。
The specially-designed walk-in plenum structure facilitates the replacement of filter bags from inside the
filter housing, thus ensuring air leakage to be under 2.5%, to prevent corrosion by rust and to lower energy
consumption of the fans due to minimum of false air;
●基于 CFD 技術的氣流分布、清灰模擬和設備強度整機結構優化，確保更合理的結構。
Optimum structure ensured by CFD-based gas distribution, de-dusting simulation and the overall
optimization of the equipment;
●關鍵裝置噴吹管和噴吹單元獲得多項國家發明專利和實用新型專利，高效清灰，并保證了脈沖閥和濾袋的使
用壽命更長。
Key devices, the purge tube and the purge unit, are patented with several national invention and utility
model patents. De-dusting efficiency and extended service life of the pulse valve and the filter bag can thus
be guaranteed;
●標準板塊結構設計，方便現場安裝，并利于結構密封施焊。
Modular design, easy for erection at site and for applying sealing welds;
●完美的清灰控制系統， PLC 控制，可方便實現清灰程序、間隔、強度可調，同時設置運行參數監控顯示。
The well-designed de-dusting control system is PLC-based, which allows to conveniently adjust the mode,
interval and intensity of the de-dusting program and to display all relevant operational parameters;
●采用智能運行監測系統，確保生產工藝設備的可靠運行。
A smart monitoring system is used, which ensures reliable operation of this important process equipment.

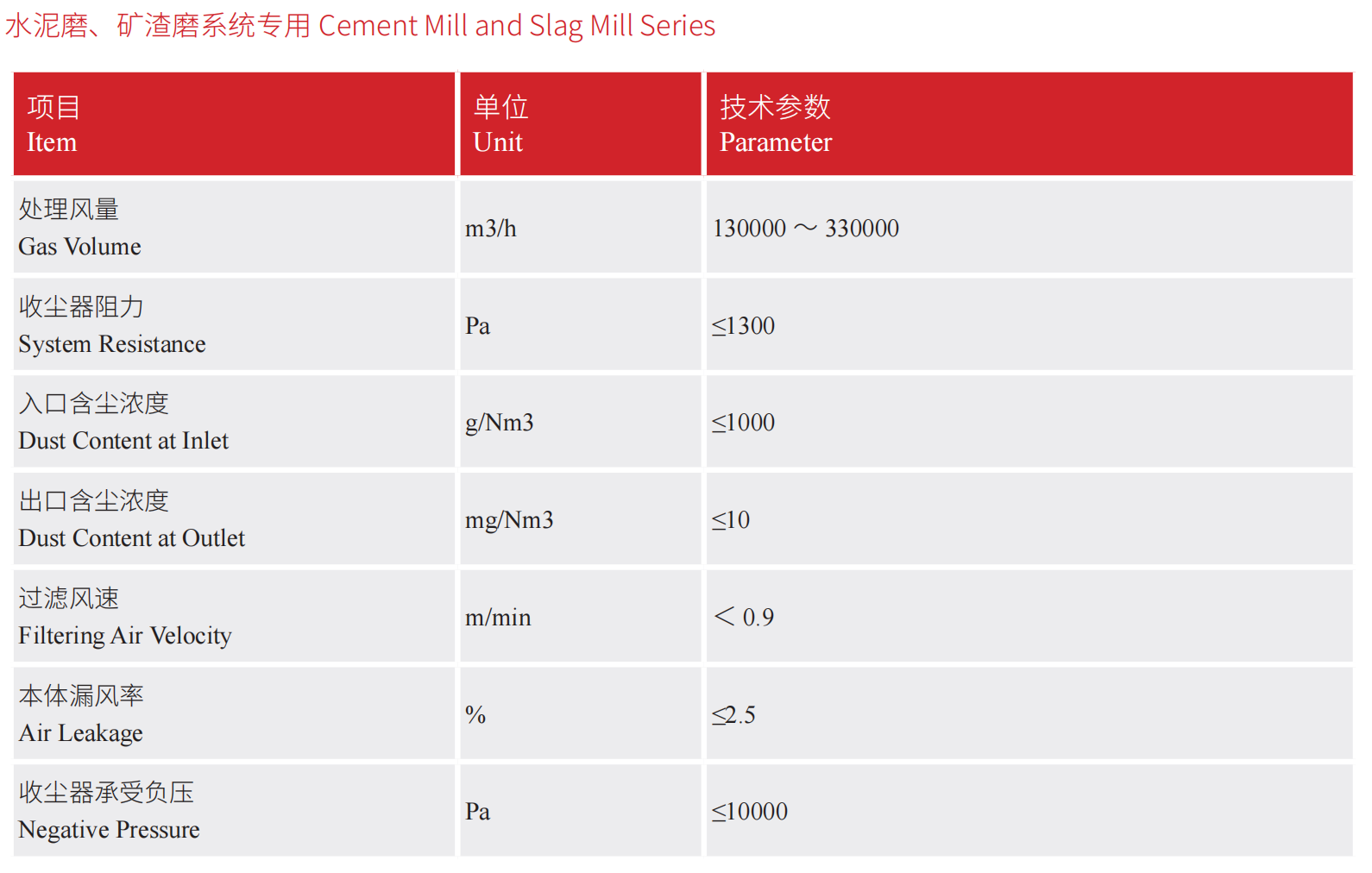

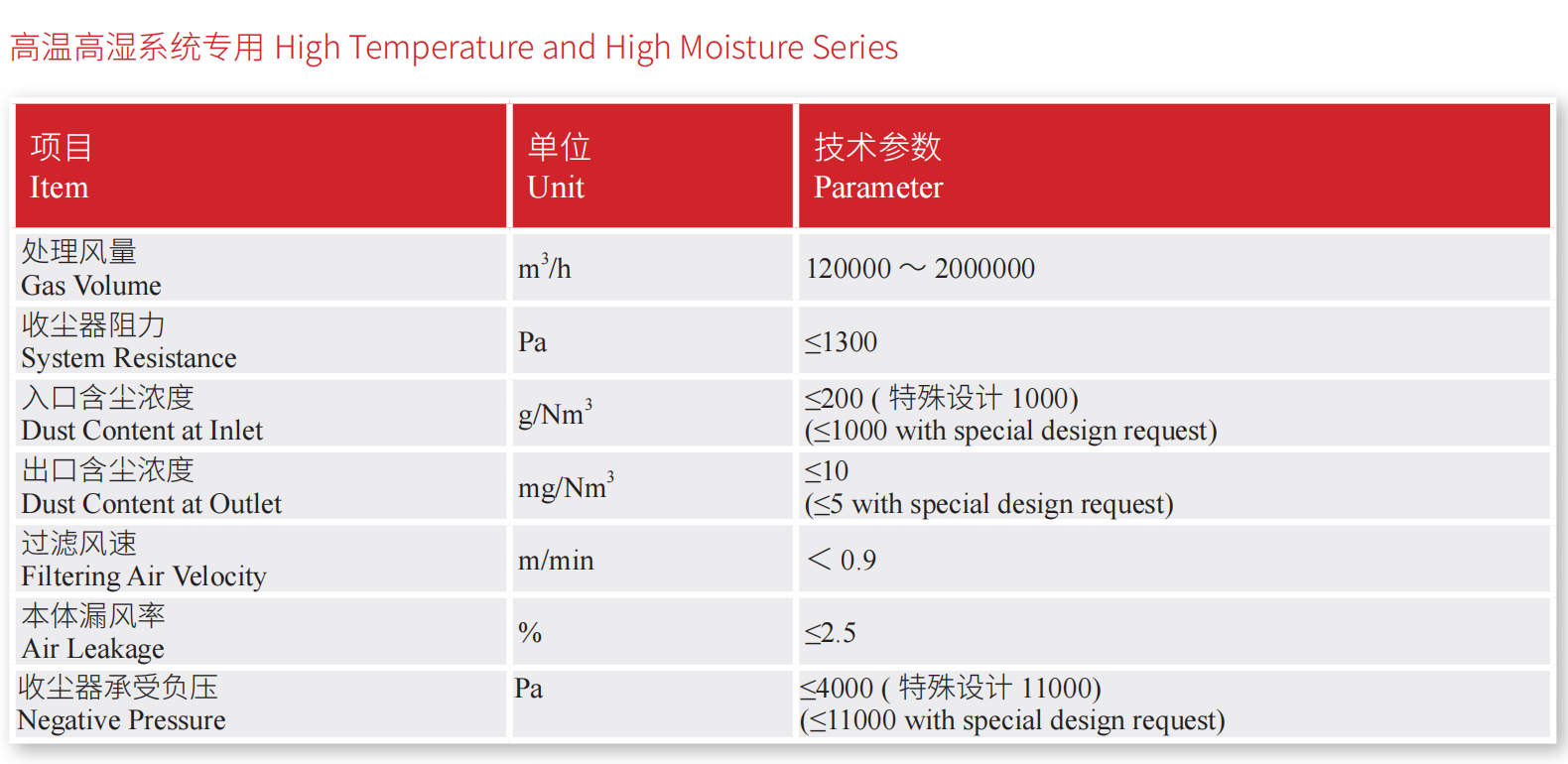

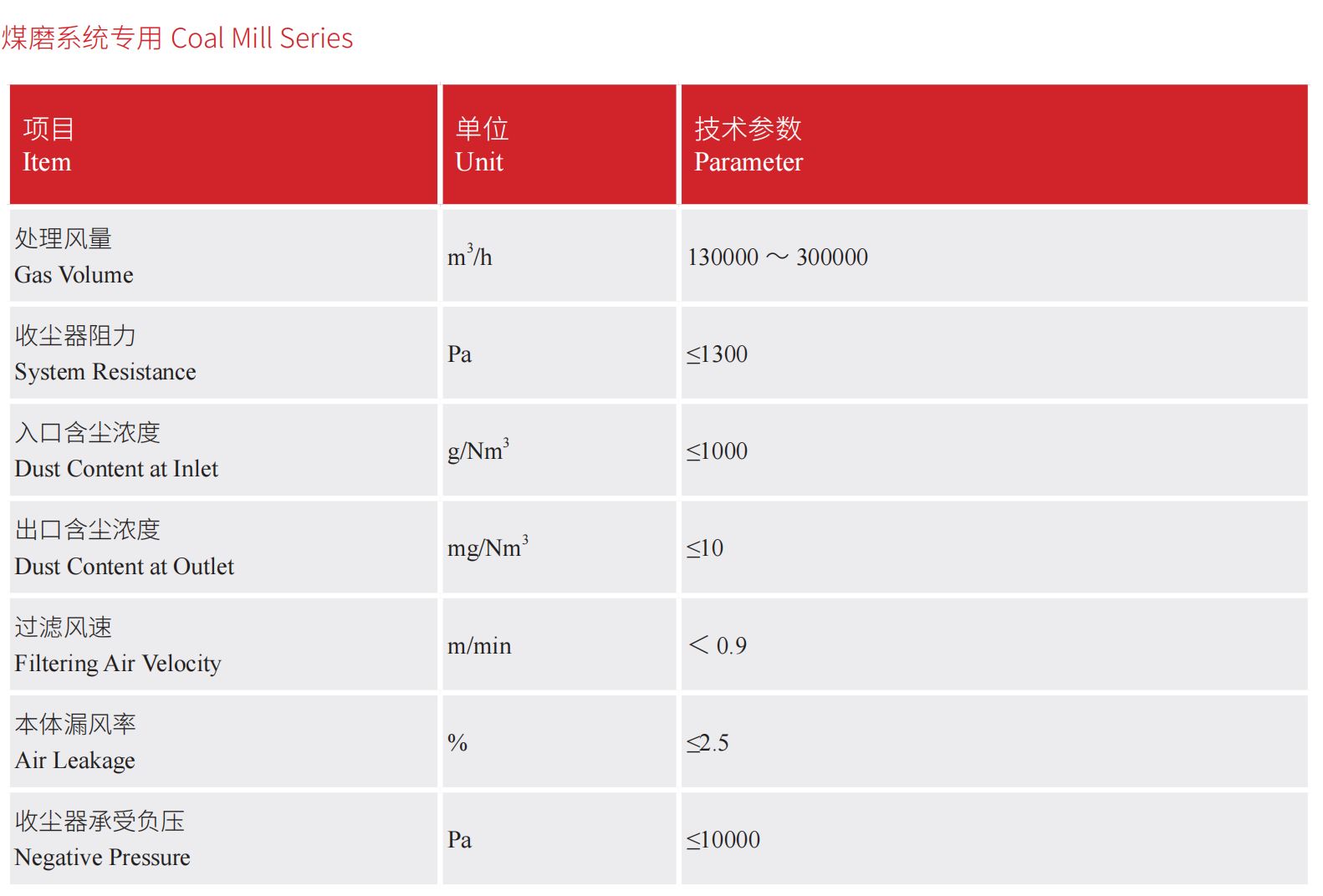

技術參數
