立式磨

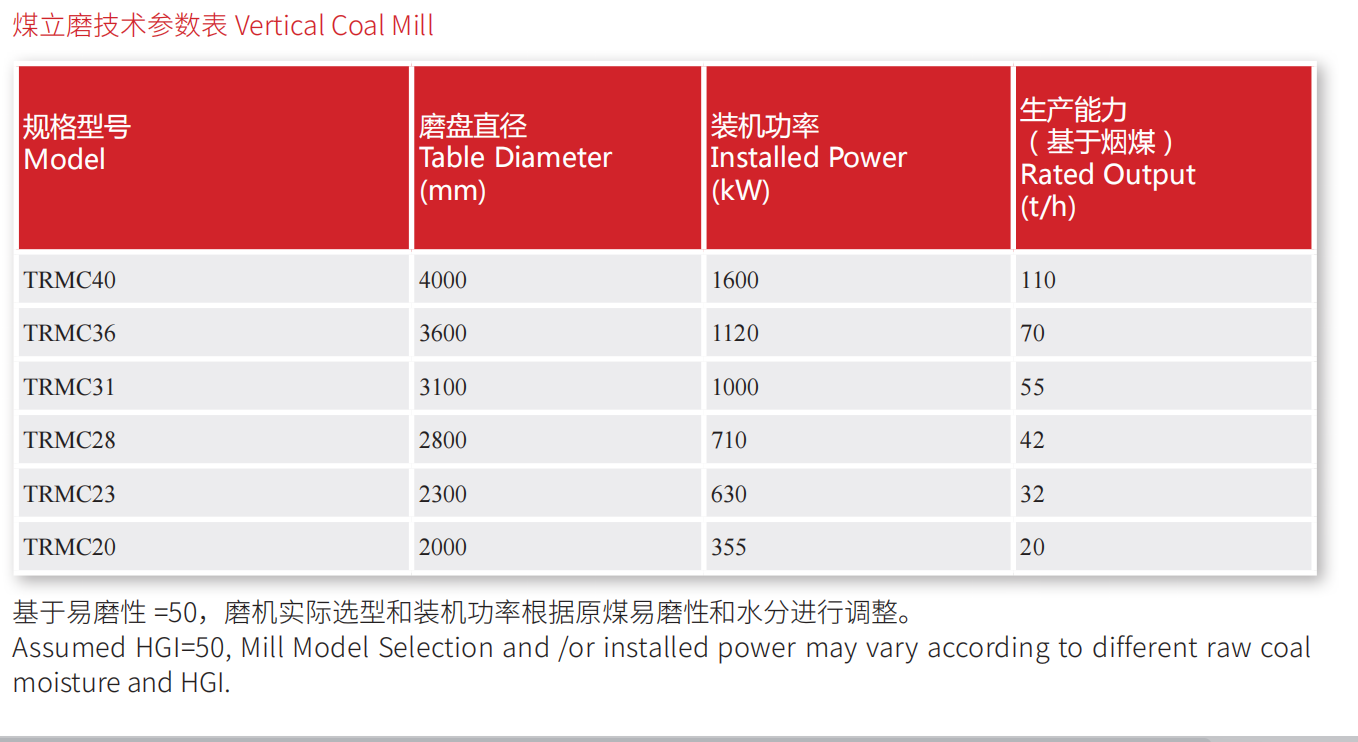

燃料立磨
燃料立磨專門用于粉磨煤粉、石油焦粉等，用于水泥煅燒和電力等行業的燃燒系統。適用于煙煤、無煙煤、石
油焦等的粉磨。
SINOMA-TCDRI VRM for Fuels are used for grinding bituminous coal, anthracite and petcoke for the burning systems in cement burning and power industry.

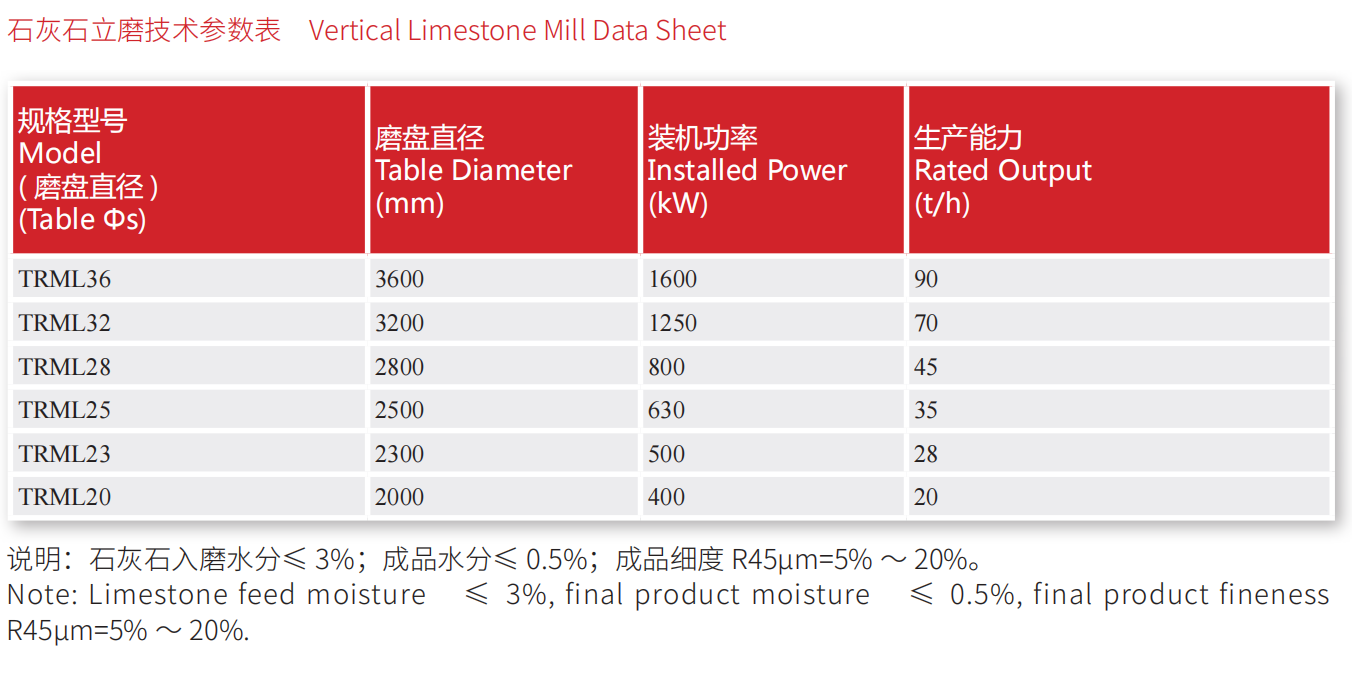

石灰石立磨
石灰石立磨用于發電廠脫硫、冶金還原、石灰石細粉的粉磨。
SINOMA-TCDRI VRM for Limestone are used for grinding limestone into fine powder then be used in the desulfurization process in power plants or metallurgical plants.

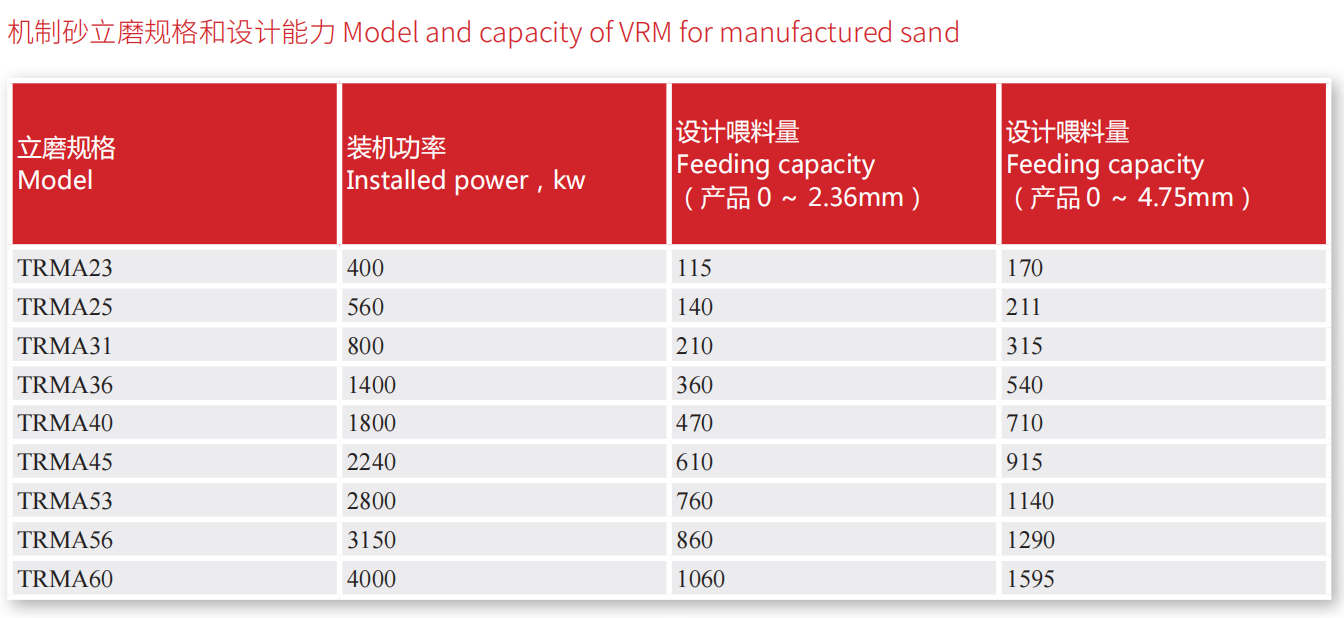

機制砂立磨
機制砂立磨是專門用于生產機制砂的立式輥磨機，由于其結構和工藝特點具有中碎、細碎和粉磨功能；可用于
生產微粉、超細砂和細砂等產品，并具有烘干功能；
The manufactured sand vertical mill is the vertical roller mill specially used for the production of machine-made sand. Due to its structure and process characteristics, it has the functions of medium crushing, fine crushing and grinding; it can be used to produce micro powder, ultra-fine sand and fine sand, etc. material can be dried simultaneously;
立磨制砂系統可實現如下幾種工況：
The VRM for manufactured sand system can realize the following working conditions:
● 單獨生產微粉（≤ 0.08mm，如石灰石、火山灰、凝灰?guī)r等微粉）；
Separately produce micro powder ( ≤ 0.08mm, such as limestone, volcanic ash, tuff and other micro
powder);
● 同時生產微粉和超細砂（0.08-1.18mm，細度模數 0.7-1.5），超細粉用作混凝土摻合料，超細砂用作特種砂
漿或瓷磚膠等產品的骨料；
Simultaneously produce micro-powder and ultra-fine sand (0.08-1.18mm, fineness modulus 0.7-1.5), ultra
fine powder is used as concrete admixture, the ultra-fine sand is used as aggregate of special mortar or tile
adhesive;
●
同時生產微粉、細砂（0.08-1.18mm）和中砂（1.18-2.36mm），超細粉用作混凝土摻合料，中細砂用作砂漿骨料；
Simultaneously produce fine powder, fine sand (0.08-1.18mm) and medium sand (1.18-2.36mm), ultra-fine
powder is used as concrete admixture, and medium fine sand is used as mortar aggregate;
●生產微粉和普通機制砂（0.08-4.75mm，細度模數 2.3—3.7），超細粉用作混凝土摻合料，機制砂用作混凝
土和砂漿骨料。
Produce fine powder and ordinary manufactured sand (0.08-4.75mm, fineness modulus 2.3-3.7), ultra-fine
powder is used as concrete admixture, and manufactured sand is used as concrete and mortar aggregate.
